Compact / Mid Power
SlimLine AC Inverter 1000 Watt (MSW)
- 12V Input
Description
Compact and powerful! 3 AC outlets with TrueRated Power™. 1,000 Continuous watts, no exceptions!

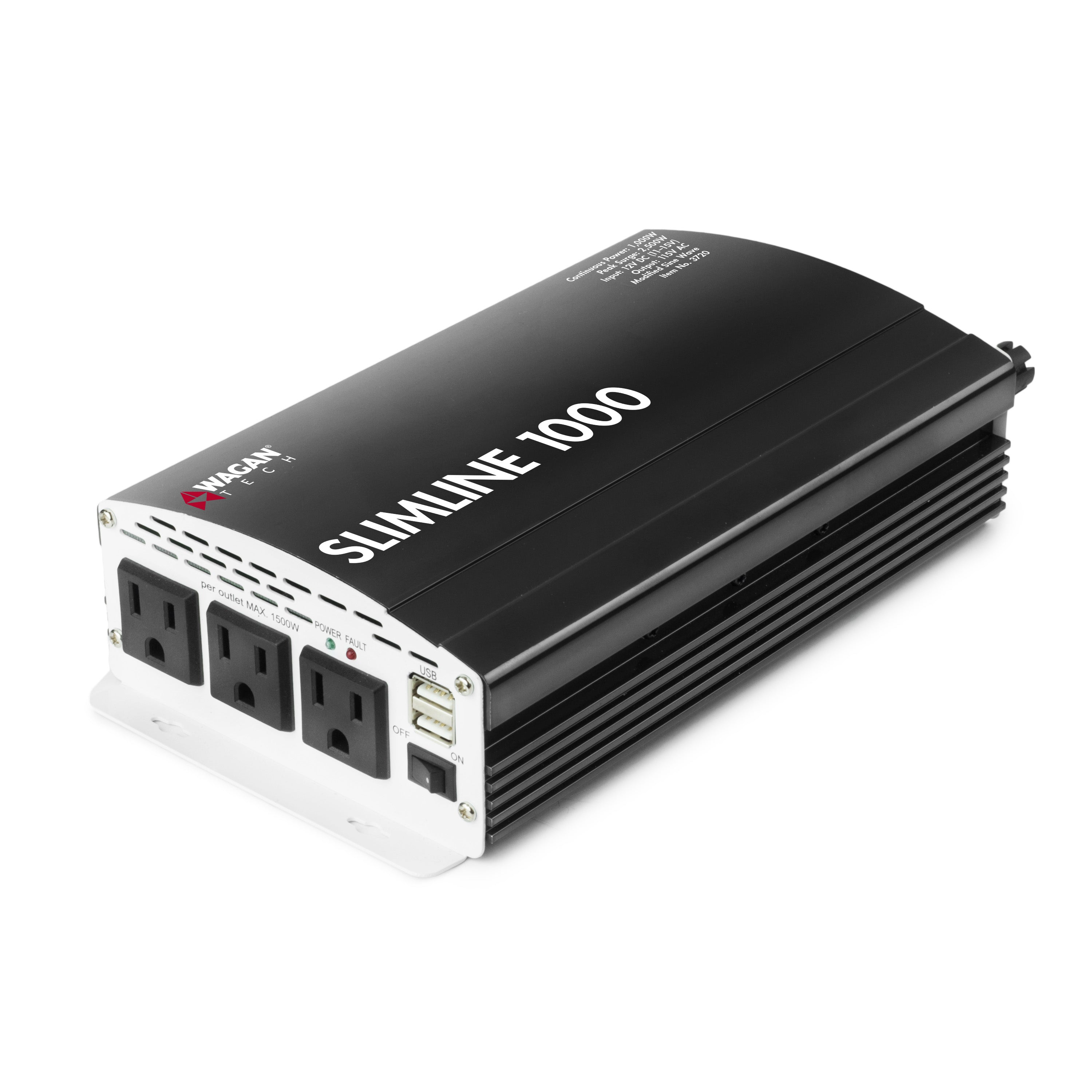

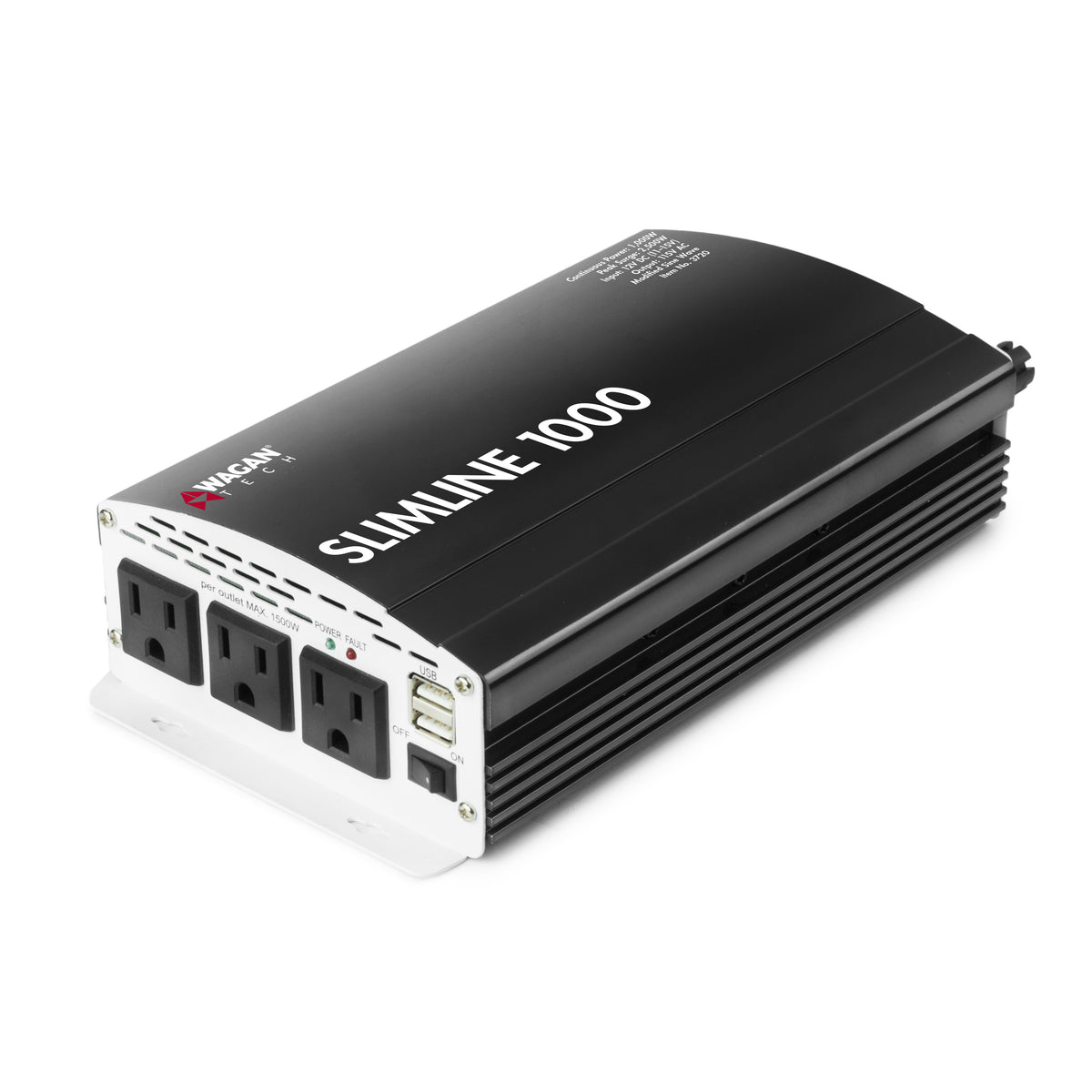

Wagan Tech SlimLine 1000 Watt Inverter
Our SlimLine 1000 Watt Inverter is high output, compact, and slim; hence the reason it is in our Slimline family of power inverters. We have dubbed this line “Slimline” as all of the inverters are high performance but as slim and compact as possible. Featuring 3 US standard AC outlets, Power and fault LED Lights, USB Power Ports, Power switch and thermal cooling fans, the SlimLine 1000 Watt Inverter is ideal for your high power needs!
Features
Taking cues from its big brother, the SlimLine 1000 Watt Inverter is small in size, but offers huge performance. 1000 Watts of TrueRated power, 3 AC receptacles (wall power outlet) as you’d find in your home, 2 USB Power Ports, thermal cooling fans, and a slew of safeties built in, the SlimLine 1000 Watt Inverter is exactly what you’ve been looking for!
Front Component Details

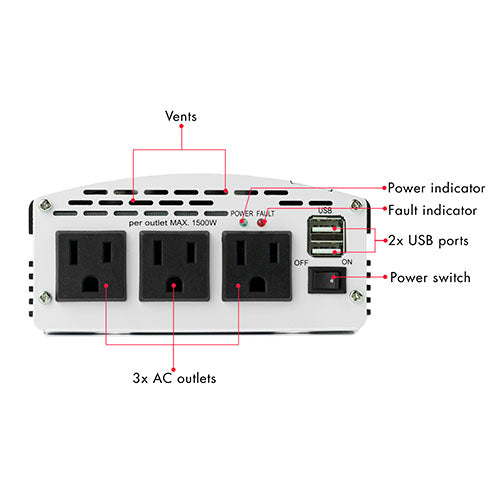

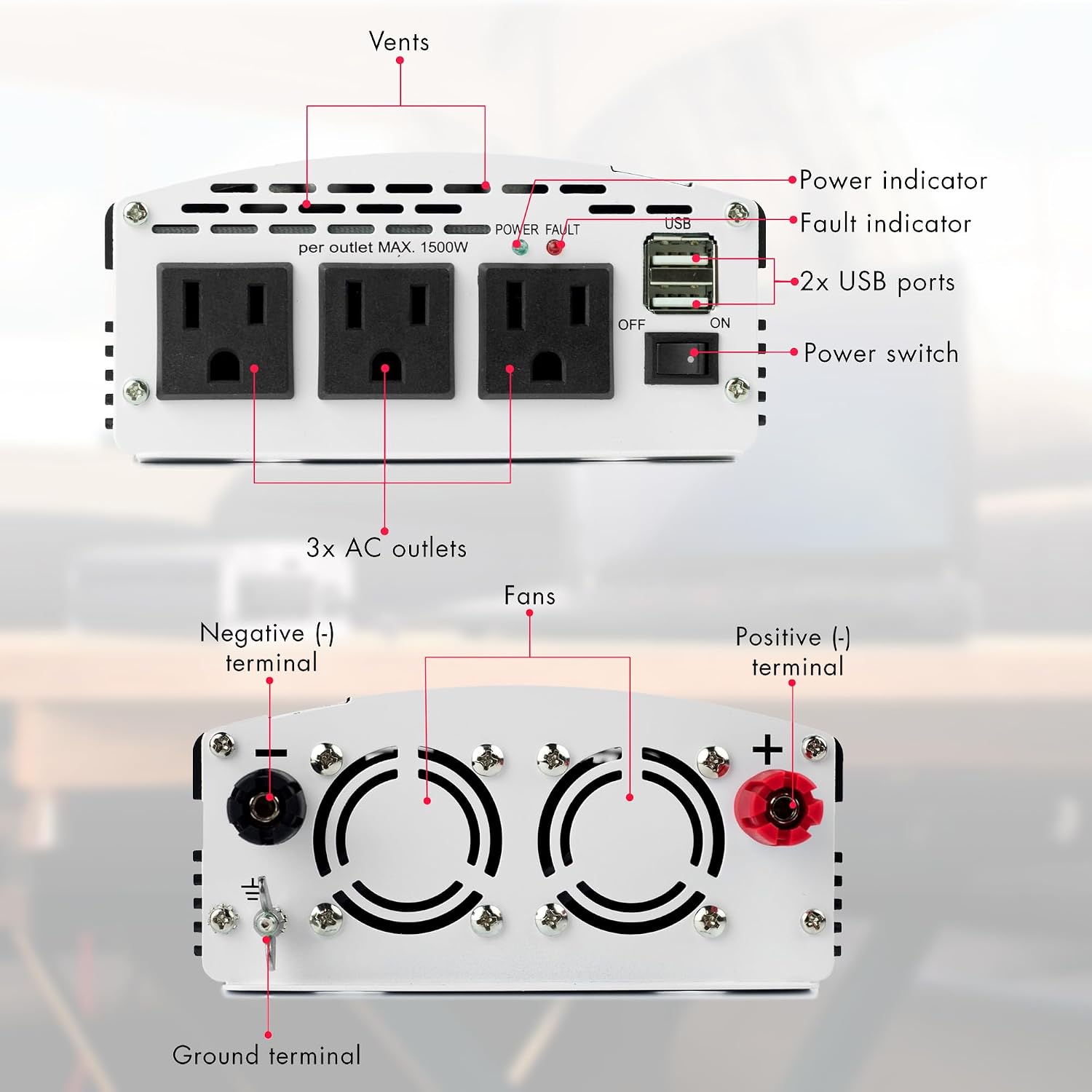

On the front of the SlimLine 1000 Watt Inverter you will find 3 standard US 3-prong AC outlets, 2 USB Power Ports (5V, 3.0A shared), Red fault LED light, Green Power LED light, Cooling Vents, Power switch, and the front mounting flange.
Rear Component Details
The rear of the SlimLine 1000 Watt Inverter offers: Black (Negative) threaded battery terminal, Red (Positive) threaded battery terminal, Neutral to ground bonding terminal (wing-nut), mounting flange, and the two thermal cooling fans.
TrueRated Power
TrueRated Power is Wagan Tech’s coined term for truth in advertising and performance. Simply put, our TrueRated inverters are tested at full load (the number printed on the inverter) and will sustain that load continuously for 24 hours.
For example, our SlimLine 500 Watt Inverter will run for 24 hours straight with a 500 Watt load. Our competitors claim "continuous wattage" when in fact most are only rated at 20 minutes of continuous wattage. After 20 minutes, the competitors output wattage will drop down by as much as 25% of their claimed wattage (in a 500 watt inverter, that can be a 125 watt loss!).
Is This the Right Inverter for You?
If you are having trouble deciding which inverter is right for your needs or are having trouble understanding the confusing inverter nomenclature, check out our inverter blog to help get a better grasp on what it is that you are looking for! Click Here!
1000 Watt Applications

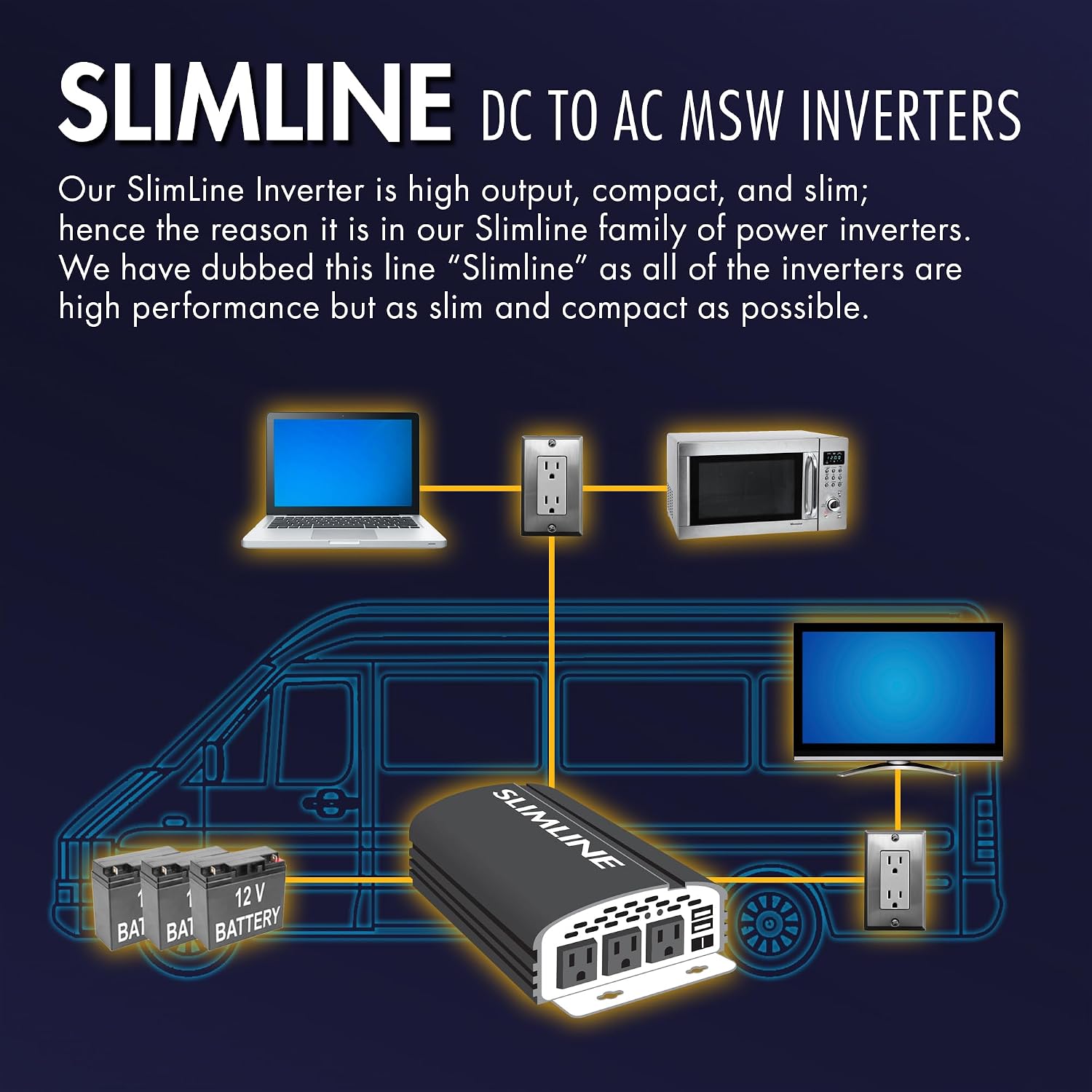

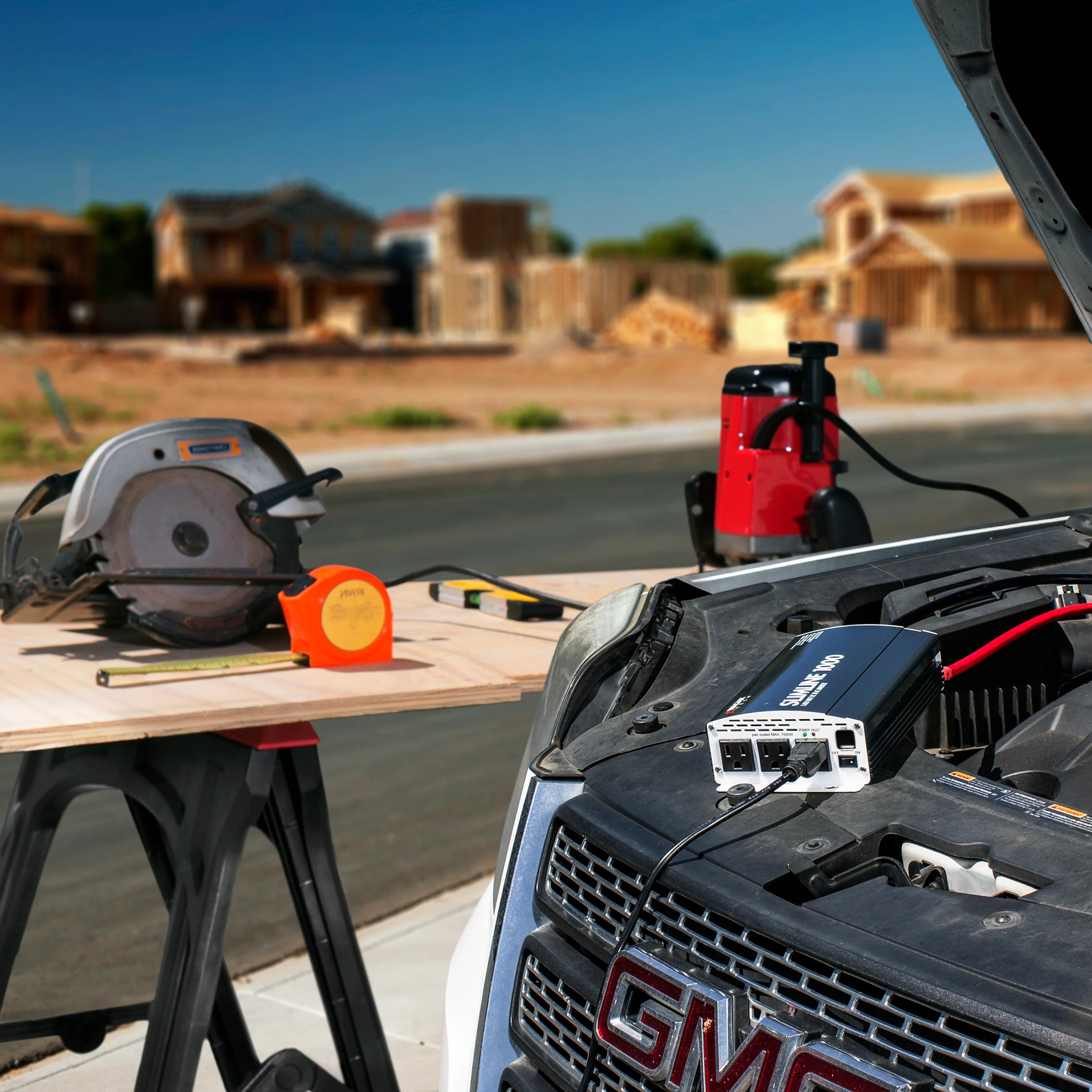

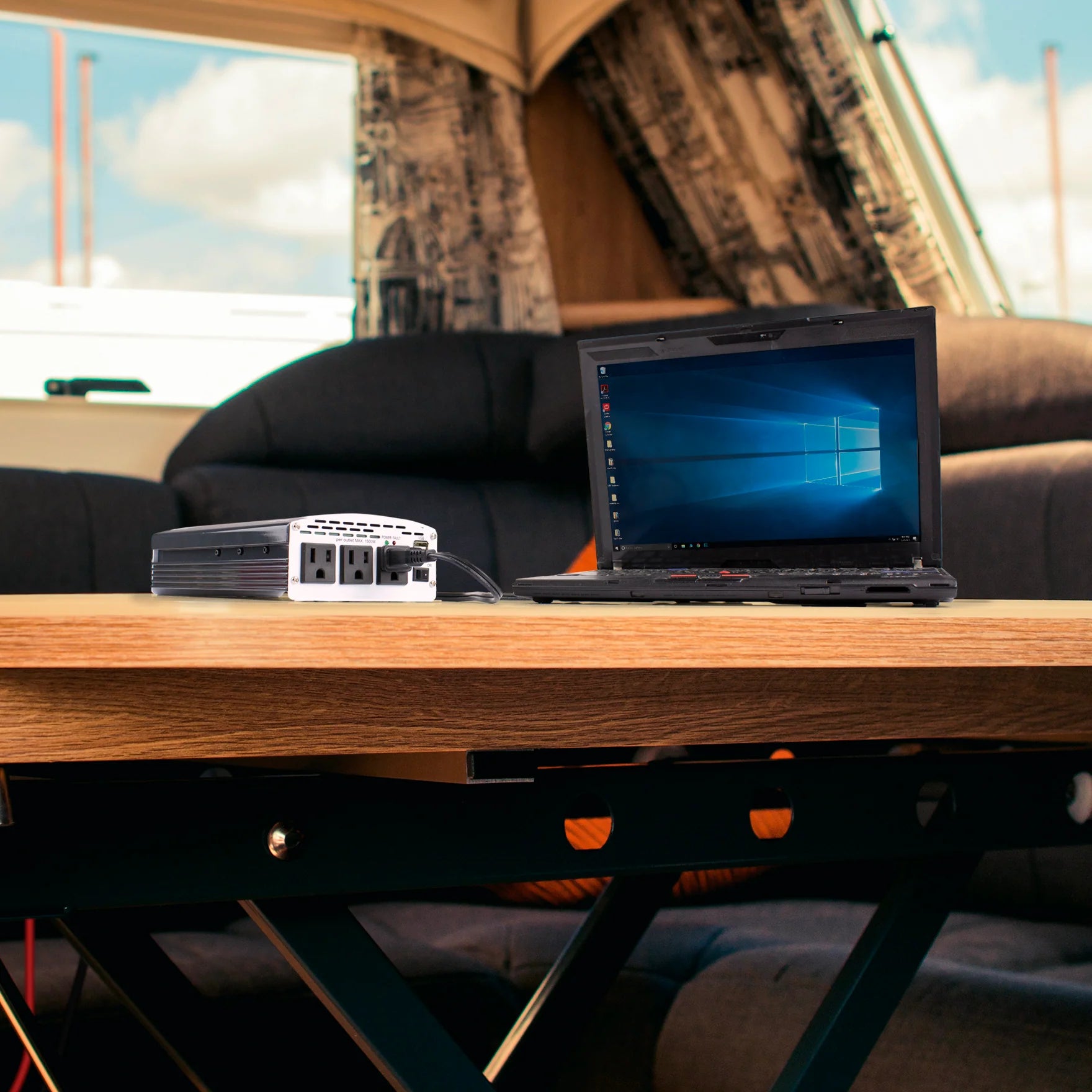

In your vehicle, boat, motorcycle, RV, truck, Camper, tail-gating, camping, kid’s soccer games, or anywhere you need to turn DC (battery) power into AC (household) power is where the SlimLine 1000 Watt Inverter will shine! 1000 continuous watts means that you can run your appliance without worry of the SlimLine 1000 Watt Inverter letting you down like lesser inverters. Blender, TV, gaming systems, refrigerator, microwave, computer, cooking appliances, and other household electronics are all able to be powered!*
Quick List of Features
- 1000 Watts Continuous TrueRated Power
- 2500 Watt Surge Power
- 2 USB Power Ports
- Built-in Safety Protections
- Twin Thermal Fan Cooled
- Low Battery Alarm + Automatic Shut-down
- Built-in Mounting points
- Neutral to Ground Bonded/True Ground
Don't forget the fuse!
*See manufacturer specifications for appliance power requirements
*24V & 48V DC input models are available for direct import orders. Please call 1.888.714.9316 or email customerservice@wagan.com for more information
WARNING: This product can expose you to chemicals including LEAD, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Specs
- TrueRated Power™: 1,000W
- Surge power: 2,500W
- AC output: 115V
- Frequency: 60Hz
- Socket type: U.S. standard 3-prong (3x)
- USB Power Ports: 5V, 3A Shared (2x)
- Maximum efficiency: 90%
- Output waveform: Modified Sine Wave (MSW)
- Overload protection: Automatic shutdown
- Overvoltage shutdown: 15.5V±0.5V DC
- Overheating protection: Cooling fan with automatic shutdown
- Cooling Fan: Temperature Controlled
- DC Input: 12V*
- DC Cable: 3 feet, 6AWG (Included)
- Input range: 11V to 15V
- Short circuit and reverse polarity protection: Internal fuses
- Internal Fuses: ATO 35A (x3)
- Low battery alarm: 10.5V ± 0.5V
- Low battery automatic shutdown: 9.5V ± 0.5V
- No load current draw: < 1.0A
- NTG Bond: Yes
- True Ground: Yes
- Weight: 3.0 lbs.

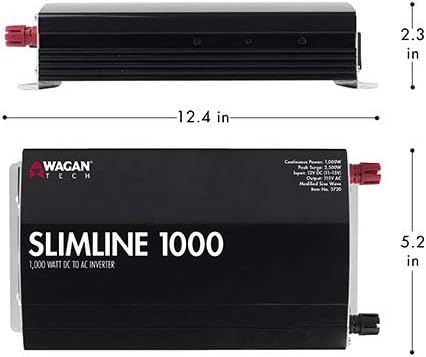

- Dimensions L x W x H (in.): 10.0 x 5.2 x 2.4
Warranty: 2 years
Videos
-
MEET THE SLIMLINE SERIES
Take A Closer Look
Watch to see how SlimLine combines a compact design with practical features for power on the go.
BUILT FOR THE JOURNEY
POWER FOR LIFE ON THE MOVE.
Convert battery power into dependable AC power for RV travel, camping, overlanding, and off-grid setups.
SET UP CAMP.
STAY POWERED.
AC POWER FOR
THE ROAD AHEAD.
DC Input Terminals
Power LED
Fault LED
ON/OFF Switch
USB Ports
Three 115V AC Outlets
Cooling Fan
Battery Terminals
Plug in with confidence
Everything within reach.
3×
Protected AC outlets
Connect standard three-prong appliances and electronics.
2×
USB 3A ports
Shared 5V power for phones and USB devices.
1
ON/OFF switch
Manual power control with LED indicators.
2
Cooling fan
Temperature-controlled cooling.
INVERTER LEARNING CENTER
FIND THE RIGHT INVERTER FOR
YOUR NEEDS.
Not sure which inverter is right for your setup? Our quick videos explain the essentials you need to choose with confidence.
01
DECIDE WHAT YOU'LL POWER
02
CALCULATE THE WATTAGE YOU NEED
03
CHOOSE BETWEEN MSW AND PSW
STILL NEED A HAND?
Tell our customer support team what you plan to power, and we'll help you find the right inverter.
Frequently Asked Questions
Appliances and electronics with combined continuous demand up to 1,000W. Always check each device’s starting and running wattage.
Modified sine wave provides reliable power for most everyday devices at a more affordable price point. Ideal for tools, appliances, and non-sensitive electronics.
Yes. A 3-foot, 6 AWG DC cable set is included.
The SlimLine 1000W does not support a remote switch. Consider the SlimLine 1250W which includes a remote.
Overload, over-voltage, overheating, short-circuit, and low-battery protection with automatic shutdown.
